End User
SSEN South
Client
KUS Power Engineering
Project Title
Replacement of 1x 132kV Outdoor CB at Melksham Substation (concept and detailed design)
Year
2023
Project Scope

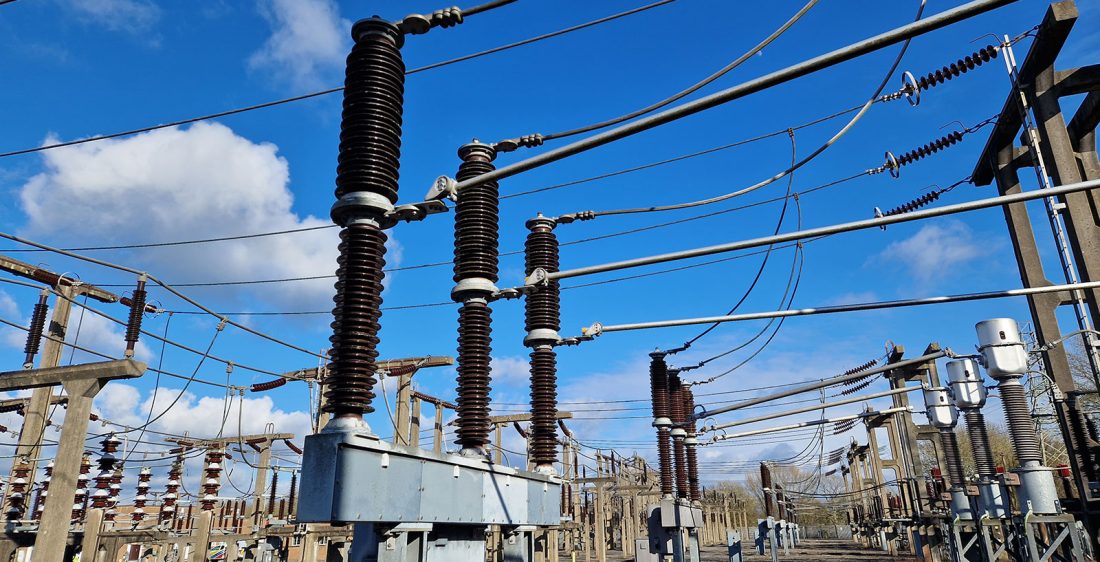

Replacement of the existing 132kV SF6 outdoor circuit breaker A105 (Frome 2 Circuit) at Melksham 132/33kV substation and provision of a new protection panel and interfacing with existing protection scheme.
Our Scope
To undertake Part A feasibility design and Part detailed design:
- Site survey
- Protection notes and battery assessment
- SLD and Main Connection & Protection (GREEN & RED)
- AC & DC Schematic (GREEN & RED)
- Interlocking Schematic (GREEN & RED)
- Wiring Diagrams (GREEN & RED)
- Panel General Arrangement (GREEN & RED)
- Multicore Cable Block Diagram (GREEN & RED)
- Termination Schedule (GREEN & RED)
- Panel ordering schedule
- Layout plan and elevation, electrical clearances, connectors, earthing design
